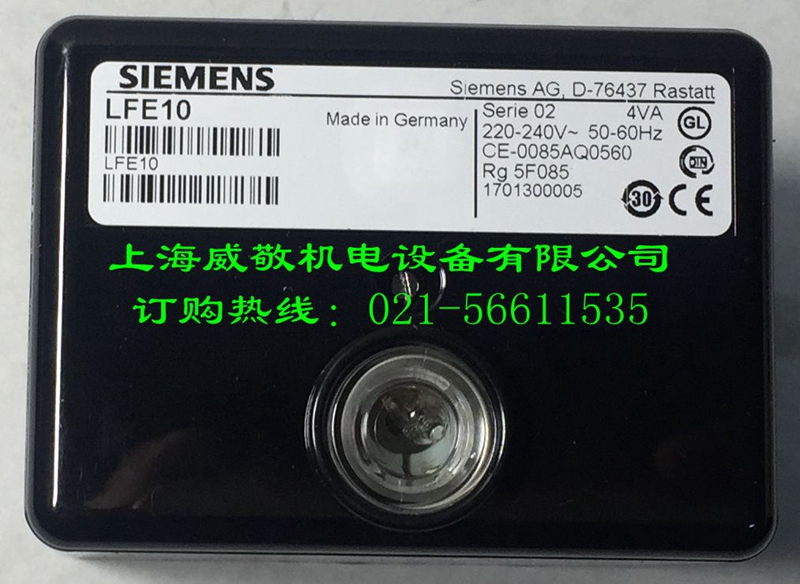

德國SIEMENS西門子原裝火焰探測器LFE10、LAE10 電眼

  •
      LFE10系列火焰監測器

      品牌：SIEMENS（西門子）



      產地：德國


       產品介紹



      Flame safeguards for burners with intermittent operation. For safety reasons - self-test of flame supervision circuit, etc. - at least one controlled



      Flame safeguards are used primarily in conjunction with the LEC1 burner control on the following applications:



    •

        Dual-supervision of burners: Supervision of the main flame or of the pilot and main flame by two identical or different types of flame detectors


      •
    •

        Supervision of forced draught oil / gas burners: Supervision of the flame with different types of detectors, depending on the operating mode


      •
    •

        Multi-flame supervision: Plants with several burners whose flames must be supervised individually by one or several detectors, whose startup and supervision, however, should or must be carried out centrally and simultaneously by only one burner control


      •
    •

        The flame safeguards can also be used in connection with other types of burner controls provided the given combination and selected circuitry do not impair the burner control’s safety functions


      •
    •

        The flame safeguards are also used as flame indication units in combustion plant with manual startup


      •
     shutdown is required every 24 hours. The LFE10 is suited for the supervision of gas flames and luminous or blue-burning oil flames in connection with UV detectors QRA... or a flame rectification probe.

       技術參數

      主要參數
      主電壓    AC220V -15%...AC240V +10%
      AC100V -15%...AC1100V +10%
      主頻率    50...60Hz ±6%
      外部保險絲    10A
      功率    4.5VA
      端口額定電流    2A
      保護等級    IP40
      重量（不含底座）    305g



      環境條件
      運輸環境    IEC 60 721-3-2
      內部條件    class 2K2
      機械條件    class 2M2
      溫度范圍    -20...+60oC
      濕度    <95%
      運行環境    IEC 60 721-3-3
      內部條件    class 3K5
      機械條件    class 3M2
      溫度范圍    -20...+60oC
      濕度    <95%
      不得進水















      LAE10系列火焰監測器

      品牌：SIEMENS（西門子）



      產地：德國


      描述：



      用于間歇運行燃燒器的火焰安全監測

      輸出類型：2個SPST

      LAE10...配接RAR...火焰探測器監測燃油火焰(連接電纜長度Max.20m)

      LFE10...配接QRA...或離子棒火焰探測器監測燃?xì)饣鹧婊蛩{(lán)色燃油火焰(連接電纜長度Max.20m)





       產品介紹



      Flame safeguards for burners with intermittent operation. For safety reasons - self-test of flame supervision circuit, etc. - at least one controlled



      Flame safeguards are used primarily in conjunction with the LEC1 burner control on the following applications:



    •

        Dual-supervision of burners: Supervision of the main flame or of the pilot and main flame by two identical or different types of flame detectors


      •
    •

        Supervision of forced draught oil / gas burners: Supervision of the flame with different types of detectors, depending on the operating mode


      •
    •

        Multi-flame supervision: Plants with several burners whose flames must be supervised individually by one or several detectors, whose startup and supervision, however, should or must be carried out centrally and simultaneously by only one burner control


      •
    •

        The flame safeguards can also be used in connection with other types of burner controls provided the given combination and selected circuitry do not impair the burner control’s safety functions


      •
    •

        The flame safeguards are also used as flame indication units in combustion plant with manual startup


      •
     shutdown is required every 24 hours. The LAE10 is designed for the supervision of oil flames in connection with selenium photocell detectors RAR...

       技術參數

      主要參數
      主電壓    AC220V -15%...AC240V +10%
      AC100V -15%...AC1100V +10%
      主頻率    50...60Hz ±6%
      外部保險絲    10A
      功率    4.5VA
      端口額定電流    2A
      保護等級    IP40
      重量（不含底座）    305g



      環境條件
      運輸環境    IEC 60 721-3-2
      內部條件    class 2K2
      機械條件    class 2M2
      溫度范圍    -20...+60oC
      濕度    <95%
      運行環境    IEC 60 721-3-3
      內部條件    class 3K5
      機械條件    class 3M2
      溫度范圍    -20...+60oC
      濕度    <95%
      不得進水
